Virtual Product Samples

An interactive discovery tool at your fingertips

To help you better understand our products and dive into some of the details of how they work, and why they are good at what they do, we’ve developed virtual product samples.

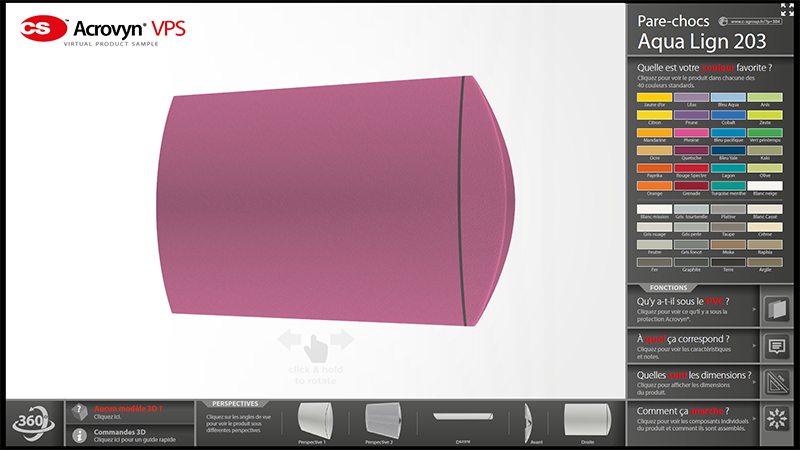

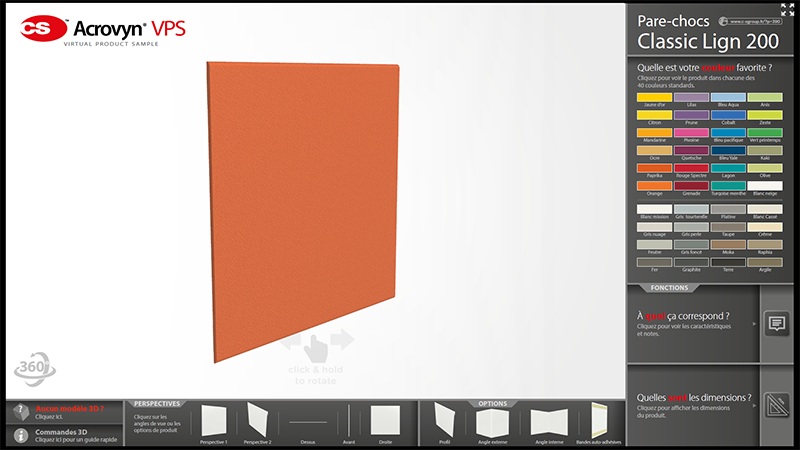

These are a 3D view of our products which you can spin around, zoom in on or explode to see the component parts. These are available on the individual product pages by clicking the 3D button on the far left hand side of the screen.

Discover and analyse a product from all angles

Understand the parts and components

Save time during the design phase

CS Products with a Virtual Product Sample

All
Architectural Louvres
Wall, Door & Corner Protection

150W20 Crash Rails

150mm high, slimline EPDM rubber crash rails used for protecting walls from damage caused by trolleys, carts and vehicles.

200W Crash Rails

200mm high, severe duty EPDM rubber crash rails, capable of withstanding the toughest knocks in back of house, delivery and car park areas.

60B Guards

60mm high, discreet B-section rubber guards offering heavy duty protection for vulnerable back of house areas.

A Series Stainless Steel Corner Guards

Surface mounted stainless steel corner guards offering heavy duty protection to vulnerable external corners.

A-3200 Ventilation Louvres

Modular ventilation louvres offering excellent airflow and a degree of rain defence, offered with a choice of visible or hidden mullions.

A-3250 Ventilation Louvres

Continuous line ventilation louvres offering excellent airflow and a degree of rain defence.

A-4050 Ventilation Louvres

Continuous line ventilation louvres offering very good airflow and some rain defence.

A-4080/A-4085 Ventilation Louvres

Modular ventilation louvres offering very good airflow and some rain defence, offered with a choice of visible or hidden mullions.

Architectural Line Rain Defence Louvres

Where continuous blade appearance is desired and high level of rain defence needs to be maintained, double bank arrangements offer a solution.

B-7505 Rain Defence Louvres

Bold Line rain defence louvres utilising two blade depths to allow creation of unique façade designs, customised with patterns, colours and shadow lines.

BG-10 Bumper Guards

102mm high, bullnose style bumper guard designed to keep wheeled equipment away from the wall. Often used at low level in combination with handrails or other crash rails.

BL-10H Bed Head Protectors

A 102mm high, medium duty bed head protector designed for mounting in horizontal orientation. Available in PVC-Free Acrovyn 4000 & with extended brackets.

BL-10V Bed Head Protectors

Pairs of vertical bed head protectors for applications where beds are often moved around and their heights frequently adjusted.

BL-40V Bed Head Protectors

Pairs of circular, vertical bed head protectors designed to protect walls from damage caused by frequently moved or height adjusted beds.

BL-4C Bed Head Protectors

Pairs of vertical bed head protectors offering severe duty protection to walls and wall mounted equipment from damage caused by frequently moved beds.

C Series Rubber Corner Guards

75mm or 100mm leg, robust corner guards offering excellent corner protection for interior and exterior areas.

CRC-150 Crash Rails

150mm high, robust grade 304L stainless steel crash rails in a curved profile, suitable for ultra-clean environments.

CRS Series

A range of grade 304L stainless steel crash rails in a classic profile offering high durability and impact protection.

D-Series Crash Rails

75mm or 100mm high, D-section rubber crash rails offering severe duty impact protection for interior and exterior areas.

Dev Product Page-Horizontal

201mm high curved crashrails with continuous retainer, offering a modern aesthetic and extensive impact protection for high traffic areas. Available in Acrovyn & Acrovyn PVC-Free.

Door Cladding

Bespoke manufactured Acrovyn Door Cladding creates a highly durable finish for extended life cycle and reduced maintenance costs.

Door Edge Protectors

Simple to install, robust and cost-effective solution for preventing damage to edges of new and existing timber core doors.

Door Face Protection

Simple, economical solution for protecting the most used and vulnerable areas of new or existing doors.

Door Frame Protection

An effective protection solution for vulnerable timber or metal door frames and architraves. Made to customer speciﬁed sizes from Acrovyn or Acrovyn PVC-Free Sheet

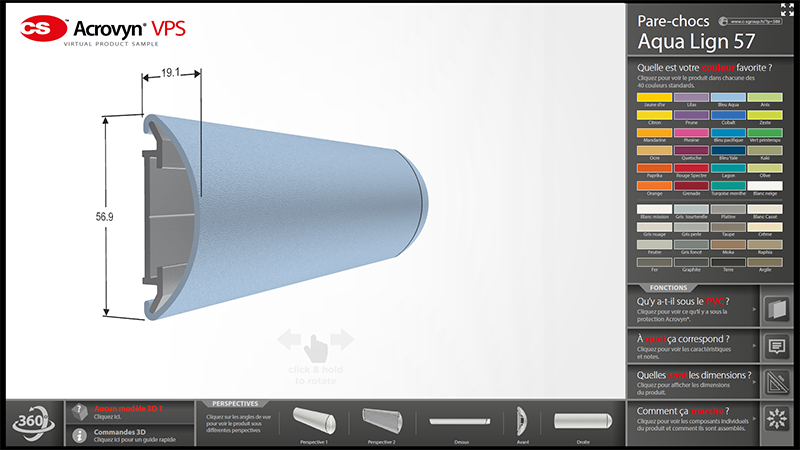

FR-225 Rub Rails

57mm high, crescent shaped, unobtrusive rub rails offering light duty protection for walls and doors.

HCR-200 Crash Rails

203mm high, classic flat style crash rails for areas prone to extensive damage from heavily laden trolleys and other equipment.

HR-6N Handrails

40mm circular handrail featuring textured Acrovyn PVC-Free cover, providing comfortable mobility support in corridors.

HRA-6 Handrails

40mm circular, anodised aluminium handrail offering durable and comfortable mobility support.

HRB-20 Hand/Crash Rails

143mm high hand/crash rails offering pedestrian support and heavy duty impact protection. Two colours can be used to provide visual contrast.

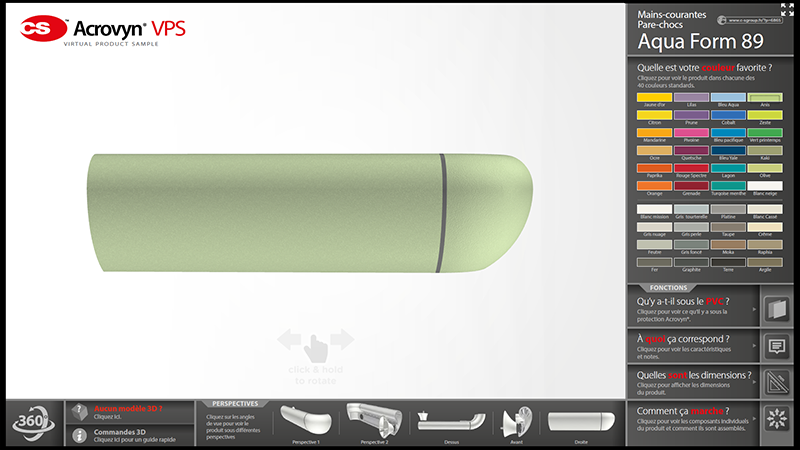

HRB-35 Hand/Crash Rails

89mm high hand/crash rails in a stylish curved design offering comfortable grip and heavy duty protection with minimum visual impact.

HRB-4C Hand/Crash Rails

140mm high hand/crash rail in a classic, flat profile, offering severe duty impact protection and mobility support in circulation routes.

HRB-50N Hand/Crash Rails

220mm high, HRB-50N combines a PVC-Free handrail and crash rail on a stainless steel bracket to provide mobility support and impact protection.

HRBW-50N Hand/Crash Rails

220mm high, HRBW-50N combines a solid timber handrail and a PVC-Free crash rail on a stainless steel bracket to provide mobility support and impact protection.

HRE-6 Handrails

40mm circular handrail combining contemporary decorative finishes with ease of maintenance of Acrovyn.

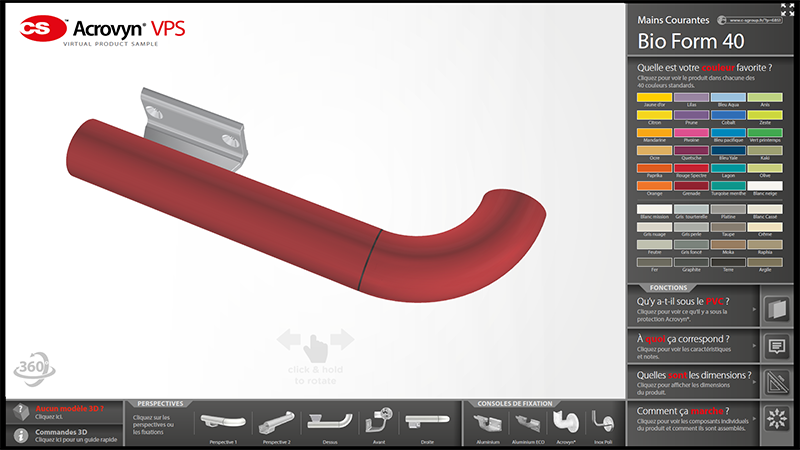

HREB-6 Handrails

40mm circular handrail featuring smooth cover with bactericidal additives, providing sturdy pedestrian support in hygienic environments.

HRO-6 Handrails

38mm wide, ergonomically designed oval handrail providing comfortable grip and firm support in circulation corridors.

HRS-6 Handrails

40mm, highly durable, stainless steel handrail offering a sleek and modern aesthetic in hygiene sensitive areas.

HRW-6 Handrails

40mm Ø solid hardwood handrail, mounted on stainless steel brackets with stainless steel end caps. Available in Ash, White Oak, Beech and Maple.

LLRSS Series

Severe duty, stainless steel rails, ideal for protecting fully glazed corridor walls and other interior features.

PL-5700 Rain Defence Louvres

Concealed behind an attractive perforated skin, PL-5700 louvres offer excellent weather performance, combined with good airflow and sight screening.

PP-76 Posts

Severe duty, stainless steel posts designed to protect architectural features, corners and doors by deflecting wheeled traffic away.

RS-5605 Rain Defence Louvres

131 mm, deep high-performance louvre offering maximum protection against wind-driven rain penetration and excellent airflow.

RS-5900 Rain Defence Louvres

130 mm deep, high-performance louvre offering maximum protection against wind-driven rain penetration and very good airflow.

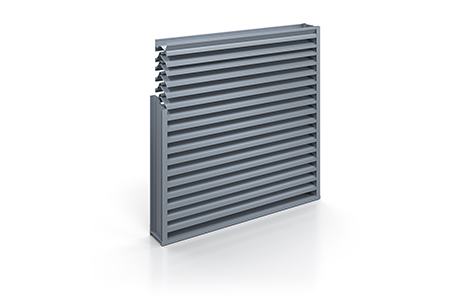

RSH-5700 Rain Defence Louvres

129 mm deep, high-performance louvre offering excellent protection against wind-driven rain penetration and good airflow.

RSH-5700AL Rain Defence Louvres

129 mm deep, high-performance louvre offering excellent protection against wind-driven rain penetration, good airflow and a continuous line appearance on the façade.

RSV-5700 Rain Defence Louvres

129 mm deep, high-performance louvres offering excellent protection against wind-driven rain penetration and good airflow.

SCR-150N Crash Rails

152mm high, classic flat profile crash rails offering effective protection for areas vulnerable to damage.

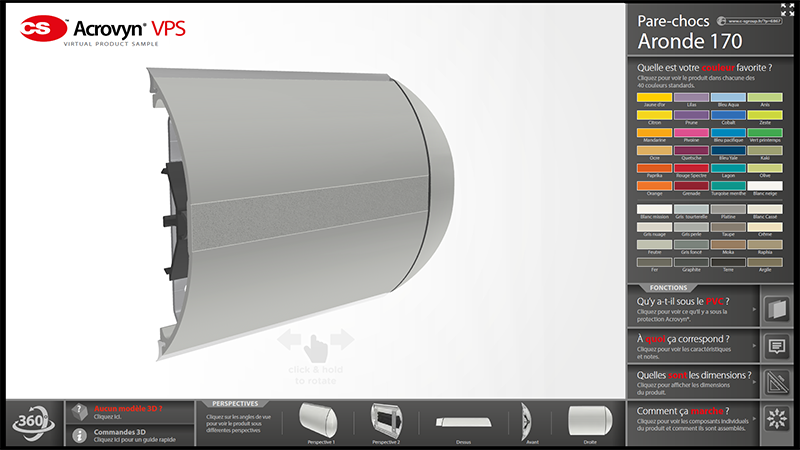

SCR-170 Crash Rails

170mm high, curved profile crash rails with smooth-textured cover, offering essential impact protection in hygiene sensitive areas.

SCR-200 Crash Rails

203mm high, classic flat style crash rails designed to prevent wall damage in busy facilities.

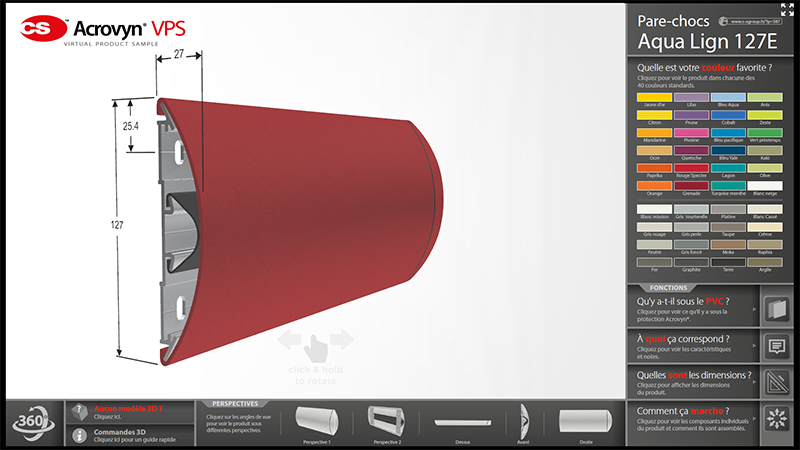

SCR-50 Crash Rails

127mm high, curved profile crash rails offering reliable protection for areas prone to impact damage.

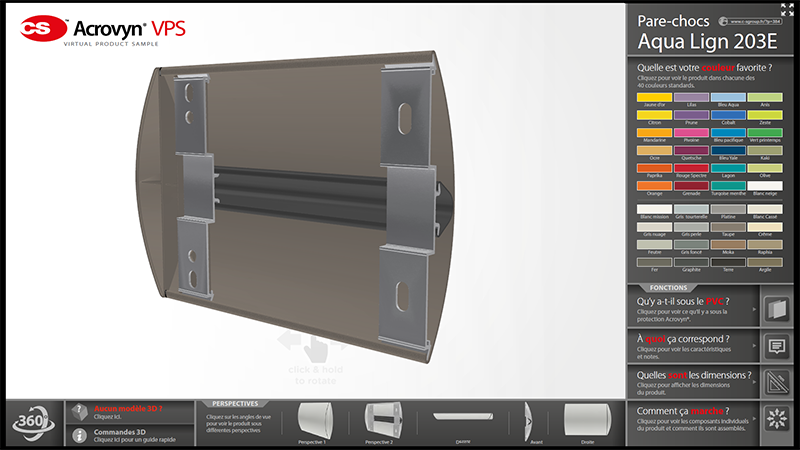

SCR-80 Crash Rails

203mm high, curved profile crash rails offering a modern aesthetic and extensive impact protection for high traffic areas.

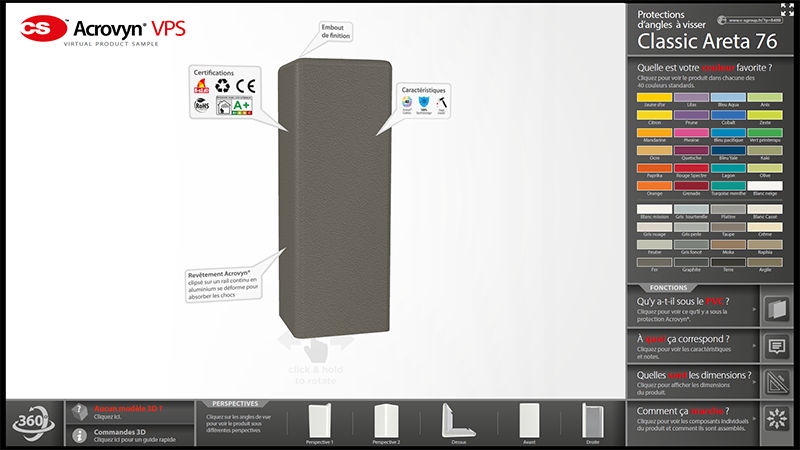

SM-20 Corner Guards

76mm leg corner guards featuring a robust aluminium retainer and a free floating Acrovyn cover, preventing damage to corners from impact caused by wheeled traffic.

SM-20M Corner Guards

76mm leg corner guards featuring a robust aluminium retainer and a free floating Acrovyn cover, designed to protect 135° corners from impact damage.

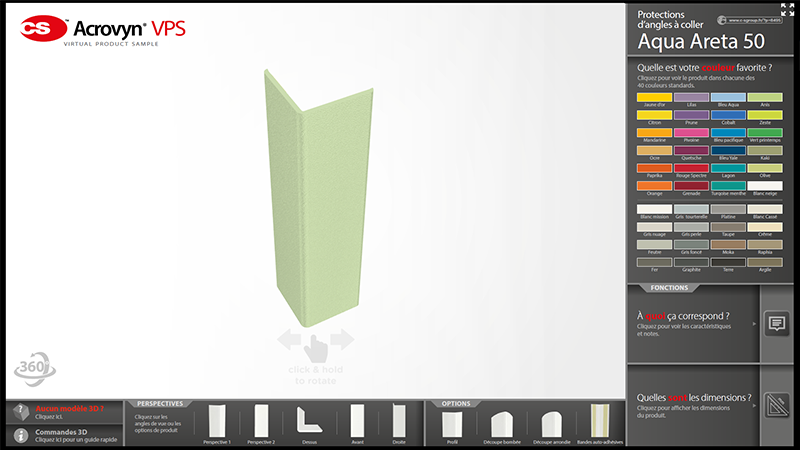

SO Corner Guards

30mm, 50mm & 75mm, surface mounted wall corner protectors. Offering medium duty protection for 90° corners. Installed fast with self adhesive foam tape.

SSM-20 Corner Guards

51mm leg corner guards featuring a robust aluminium retainer and a free floating Acrovyn cover, preventing damage to corners in busy circulation areas.

TF-N Corner Guards

Manufactured to specified sizes, simple to install thermoformed guards designed to provide protection to corners prone to damage.

TP Rub Rails

A range of easy to install rub rails protecting walls from scuffs, scratches and abrasions caused by pedestrian traffic, chairs or lightweight trolleys.
