Ventilation Louvres

Ventilation Louvres

World class ventilation louvres offering superior performance and spacial efficiency, backed up by more than 60 years global experience and a dedicated team of ventilation louvre specialists.

With CS Louvres you can be sure that no matter what your building’s ventilation, screening or weather protection needs, there is a solution to suit.

My priority is:

Rain Defence

Rain Defence louvres are designed to stop wind-driven rain entering a building, whilst still allowing efficient passage of air for natural ventilation.

View Solutions

Airflow

Ventilation louvres offering good airflow with some rain defence, for use in areas where occasional water ingress is not a major concern.

View Solutions

Screening

Screening louvres hide unsightly equipment whilst providing essential airflow to plant and HVAC machinery.

View Solutions

Free Guide to Specifying Ventilation Louvres

Learn how to correctly specify Ventilation Louvres for your project

  •  Maximum Rain Defence Solutions

The main objective of Weather Louvres is to allow the passage of air, whilst providing the area beyond the room with protection from rain penetration. When specifying weather louvres we recommend comparing the airflow class and the level of rain defence provided by the louvre. Our CS RS-5605 weather louvre offers the best combination of airflow, rain defence and spatial efficiency of any product on the market.

RSH-5700 Rain Defence Louvres
High performing louvres with horizontal blades and visible mullions, offering great protection against wind-driven rain penetration and good airflow.
RSH-5700AL Rain Defence Louvres
High performing louvres offering great protection against wind-driven rain penetration, good airflow and a continuous line appearance on a façade.
RSV-5700 Rain Defence Louvres
High performing louvres with vertical blades and visible mullions, offering excellent protection against wind-driven rain penetration and good airflow.

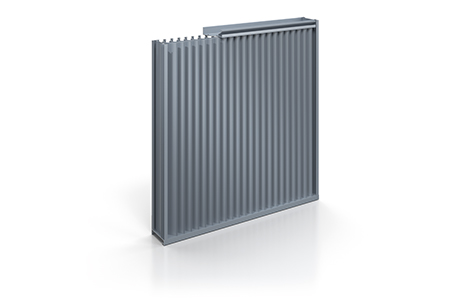

RS-5900 Rain Defence Louvres
High performing louvres with vertical blades and visible mullions, offering excellent protection against wind-driven rain penetration and very good airflow.
RS-5605 Rain Defence Louvres
High performing louvres with vertical blades and visible mullions, offering maximum protection against wind-driven rain penetration and excellent airflow.
PL-5700 Rain Defence Louvres
Concealed behind an attractive perforated skin, PL-5700 louvres offer excellent weather performance, combined with good airflow and sight screening.
B-7505 Rain Defence Louvres
Bold Line rain defence louvres utilising two blade depths to allow creation of unique façade designs, customised with patterns, colours and shadow lines.
Architectural Line Rain Defence Louvres
Where continuous blade appearance is desired and high level of rain defence needs to be maintained, double bank arrangements offer a solution.
  •  Maximum Airflow Solutions

A standard ventilation louvre will provide the maximum airflow required with minimal rain defence. These louvres tend to be preferred for projects where economy is the primary consideration, high free area is important and occasional water penetration will not cause significant problems. When specifying a standard ventilation louvre we recommend looking at the blade spacing and the free area provided by the louvre.

A-3105C Ventilation Louvres
Continuous line ventilation louvres offering excellent airflow and a degree of rain defence.
A-3105 Ventilation Louvres
Modular ventilation louvres offering excellent airflow and a degree of rain defence, offered with a choice of visible or hidden mullions.
A-4085C Ventilation Louvres
Continuous line ventilation louvres offering very good airflow and some rain defence.
A-4085 Ventilation Louvres
Modular ventilation louvres offering very good airflow and some rain defence, offered with a choice of visible or hidden mullions.
PL-4080 Ventilation Louvres
Concealed behind an attractive perforated skin, Perform PL-4080 louvres offer good airflow and weather performance.
B-6485 Ventilation Louvres
Bold Line ventilation louvres utilising two blade depths to allow creation of unique façade designs, customised with patterns, colours and shadow lines.
  •  Screening Solutions

Screening  louvres are generally used in locations where rain penetration is acceptable or the location is sheltered from adverse weather conditions as they generally offer a poor level of weather performance. Often used on the top of buildings to conceal HVAC systems, screening louvres help to hide unsightly equipment whilst providing passage of air to plant machinery. For optimal screening performance its worth remembering that screening louvres can be turned upside down to better screen plant machinery when viewed from below.

SLA-C Screening

SLA screening louver

SLA screening louver is the ideal compromise for effective concealment and perfect aesthetics with many choices of blade shapes, finishes.

SLA-S Screening

SLP Screening Louver

The SLP plastic screening louvre is an economical solution, consisting of plastic blades and aluminium mullions.

SLA-Z / SLP-Z Screening

SLP Screening Louver

The SLP plastic screening louvre is an economical solution, consisting of plastic blades and aluminium mullions.

  • Orientation : Vertical
  • Mullion : Visible
  • Blade Spacing : 25mm
  • Depth : 131mm
  • DLC : 0.466
  • Airflow Class : 1
  • Orientation : Horizontal
  • Mullion : Visible
  • Blade Spacing : 51mm
  • Depth : 127mm
  • DLC : 0.320
  • Airflow Class : 2
  • Orientation : Horizontal
  • Mullion : Visible
  • Blade Spacing : 51mm
  • Depth : 127mm
  • DLC : 0.320
  • Airflow Class : 2

Download Performance Data & CAD Drawings

Louvres

What's in the brochure
  • - Industry Leading Products
  • - Innovative New Design Options
  • - Detailed Technical Information
  • - Louvre Specification Guidance
